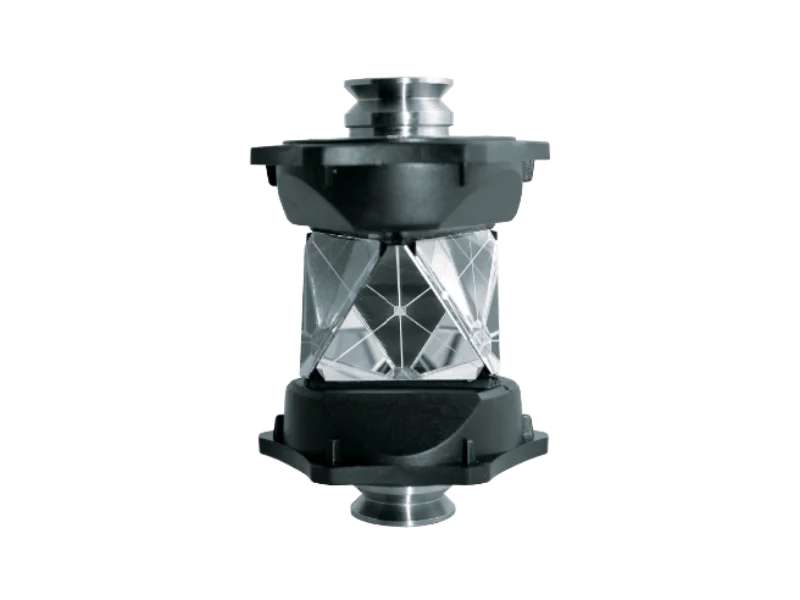

The SitePro ATP 360° is designed with the same -7mm offset and sizing as the Sokkia / Topcon ATP1. A solution that is compatible with the Sokkia and Topcon robotic stations Six (6) precision-machined corner cubes mounted in a rugged housing with solid metal core, 5 sec. accuracy 5/8-11 mounting thread on top and bottom.
FEATURES:
- -7mm prism constant
- Six precision-ground corner cubes
- Protective caps
SPECIFICATIONS:
- Suits: Robotic total stations
- Prism Constant: -7 mm
- Prism Accuracy: 2mm+2ppm (1″~5″ instrument)
- EAM spot: Φ200mm @100m
- Average measuring range: 1.3 ~ 1000m (average atmospheric condition)
- Height: 100mm
- Outside diameter: 68mm
- Inside Diameter: 38mm
- Base Connector: Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug
- Top Connector: Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug
