CHCNAV Apache3 Pro USV

£26,500.00

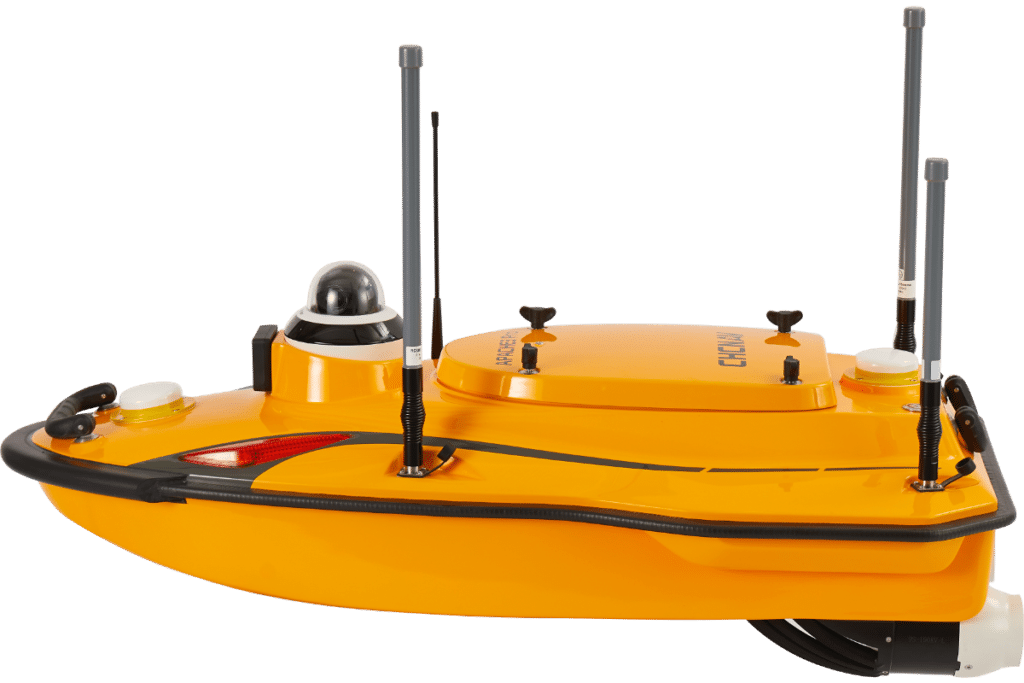

The CHCNAV APACHE 3 Pro is a compact, professional unmanned surface vehicle (USV) designed for autonomous bathymetric surveys in shallow waters. Its double-layer carbon fiber hull provides exceptional impact resistance and unsinkability. The IP67 rating guarantees dust and water tightness, protecting on-board components under all circumstances. The semi-recessed motor reduces water resistance, improves endurance, and allows speeds up to 6 m/s.

Related Products

Apache 4-17
15
£52,500.00
POA
DETAILS

Product Description

The APACHE 3 Pro comes standard with a millimeter-wave obstacle avoidance system to detect obstructions in a wide 110° angle ahead. When it encounters an obstacle, the USV autonomously charts a detour course around it, effectively minimizing the potential risk of collision damage during operation.

Physical Properties

Performances

  • Speed max: 6 m/s
  • Payload capacity: 30 kg max
  • Draft: 9 cm
  • Positioning: Full GNSS + IMU

Echosounder

  • Type: Single beam, 200 kHz
  • Range: 0.15 to 200 m
  • Resolution: ±0.01 m + 0.1% x D

Sensors

  • Camera: 360° video

Main Features

  • GNSS RTK + INS: Positioning even with interrupted GNSS signals.
  • Power Management: Smart balanced power supply.
  • CHCNAV D270 Echosounder: Accurate depth measurements.
  • Android OS: Integrated data acquisition, post-processing, and real-time parameter display.
